cadence soc encounter 8.1 install

其实安装过程和安装IC610一样,大概总结一下
1. 将下载的压缩包解压,默认会解压到SOC Encounter 8.1,尝试安装时不支持有空格的路径,所以将该目录里面的SOC08.10.000_lnx86.Base移动到了当前路径。
2. 新建安装路径,如 /xx/cds/soc810
3. 进入到 SOC08.10.000_lnx86.Base/CDROM1, 运行 ./SETUP.SH
4. terminal会有以下提示

Copyright 1985-2006 by Cadence Design Systems Inc.

LICENSED SOFTWARE – REVERSE ASSEMBLY, REVERSE COMPILATION AND
REVERSE ENGINEERING PROHIBITED. The information contained in
this package is the proprietary property of Cadence Design Systems,
Inc., or its licensors, and may only be used in accordance with
the Cadence Design Systems license agreement under which this
package is provided.

Restricted Rights Notice to Government Users

Use duplication or disclosure by the Government is subject to
the restrictions as set forth in subparagraphs (c)(1)(ii) of the
Rights in Technical Data and Computer Software clause at
DFARS 252.227-7013. Unpublished – all rights reserved under the
copyright laws of the United States.

Cadence Design Systems, Inc.
555 River Oaks Parkway
San Jose, California 95134 USA

Located CDROM at /xx/cds/SOC08.10.000_lnx86.Base/CDROM1

Specify path of install directory [OR type [RETURN] to exit]: /xx/cds/soc810 (这里写要安装到哪里)

Detecting InstallScape for lnx86…
Checking InstallScape on media…

Could not detect an InstallScape for lnx86 platform using the PATH environment variable

It is a good idea to have only one Installation of InstallScape
for lnx86 platform. If an InstallScape installation exists
please help us find it.

Do you have InstallScape for lnx86 platform installed somewhere [y/n]?y(安装virtuoso时已经安装过了installscape)

Type the path to existing InstallScape installation for lnx86:
Specify the directory containing the ~iscape directory for lnx86 [(q to quit)]/xx/cds/installscape(installscape安装在哪里)

Existing InstallScape installation directory: /xx/cds/installscape

Detected InstallScape for platform lnx86…
Checking its version…
InstallScape version 03.60.p02 for
platform lnx86
is available on media (/xx/cds/SOC08.10.000_lnx86.Base/CDROM1)

InstallScape version 03.40.p06 for
platform lnx86
is installed in /xx/cds/installscape

Your installed version seems to be older than
the version on media.

Do you want to update InstallScape in /xx/cds/installscape [y/n]?y(原来的版本比较旧,是否要更新)

Extracting InstallScape version 03.60.p02
for platform lnx86 in /xx/cds/installscape

Starting up InstallScape in GUI mode

DISPLAY environment variable is set to :0

If you do not see the InstallScape console
window or the it seems to be hanging then kill this
process.

Set your DISPLAY environment variable to a proper
value and manually start InstallScape by typing:
/xx/cds/installscape/iscape/bin/iscape.sh /xx/cds/SOC08.10.000_lnx86.Base/CDROM1:::/xx/cds/soc810

Initializing InstallScape using JVM at /xx/cds/installscape/iscape/runtime/LNX86/bin/java. This might take some time…

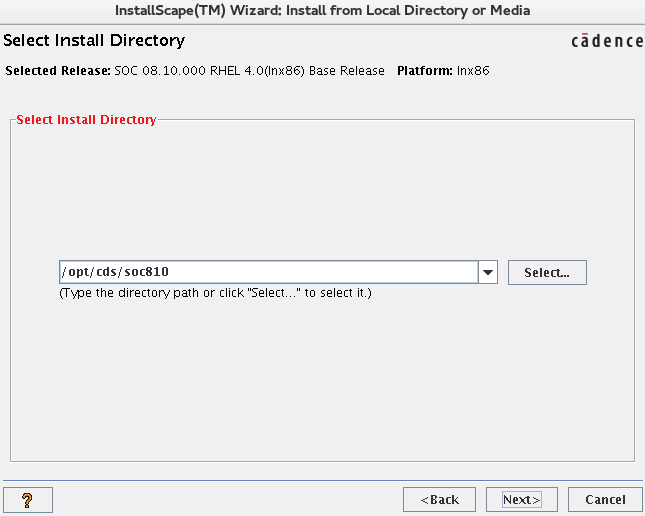

5. 选择安装目录
Screenshot from 2016-04-11 23-43-29

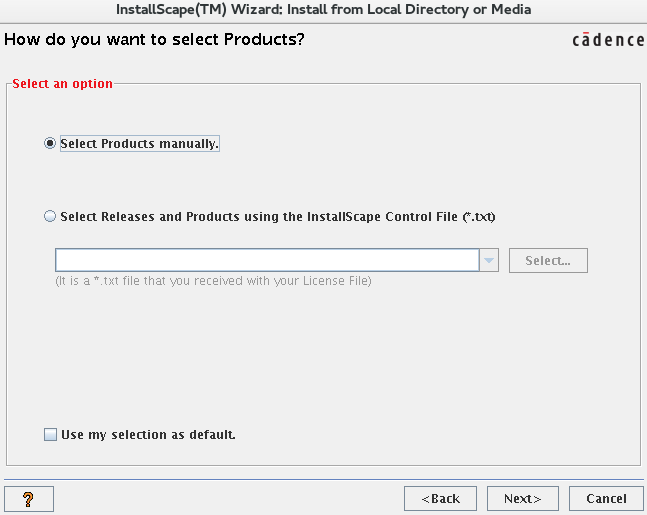

6. 手动选择安装列表
Screenshot from 2016-04-11 23-43-14

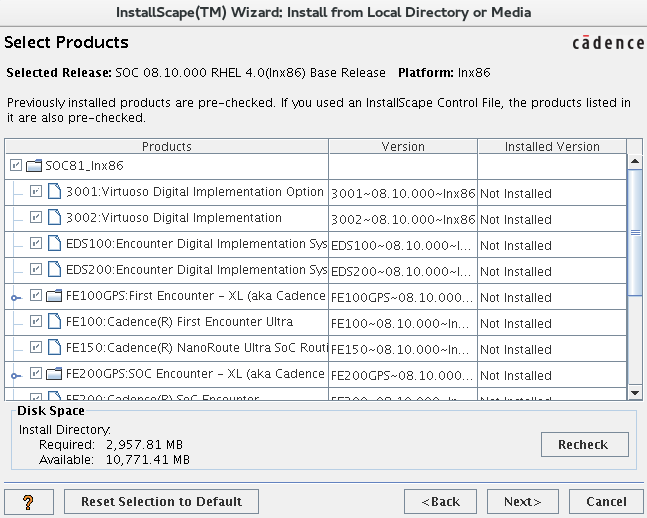

7.一般全选了
Screenshot from 2016-04-11 23-43-47

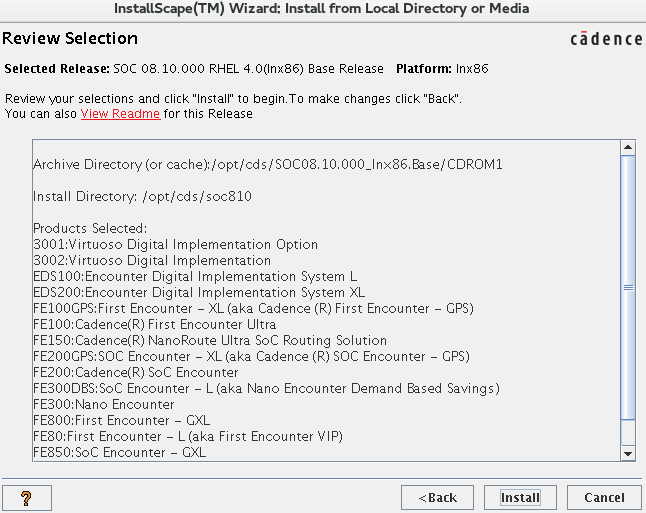

8.版本信息

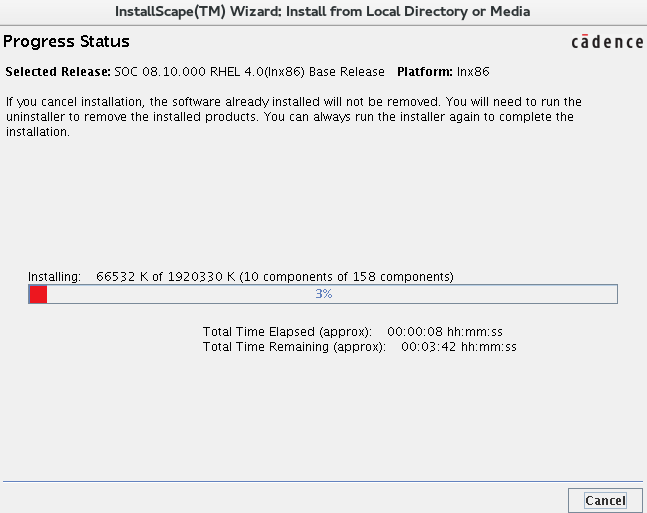

Screenshot from 2016-04-11 23-43-579.开如安装了
Screenshot from 2016-04-11 23-44-10

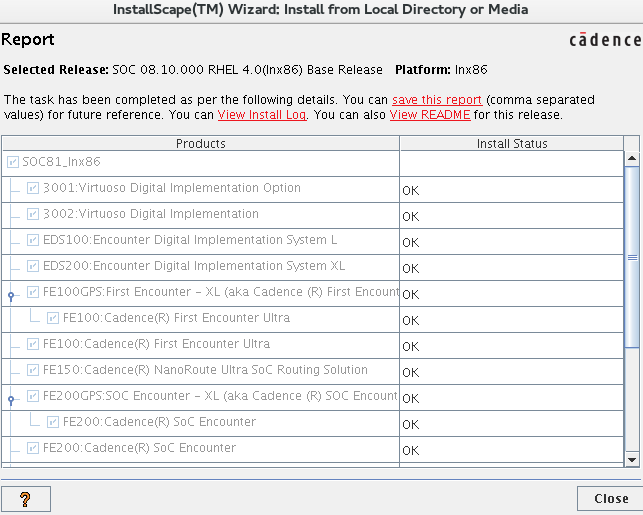

10.全部完成
Screenshot from 2016-04-11 23-48-25
